Shielded FFC

Ventura V-Flex® Shielded FFC utilises coated metal foils materials such as silver, aluminium or copper anti-oxidised tapes to be grounded or ungrounded with conductive adhesive to control EMI & ESD enhancing the performances of FFC when deployed in noisy operating environment.

Advantages

  • Improve Existing EMI & ESD performance of the FFC
  • Highly customizable to meet various impedance design specification
  • Conformance to various High Speed Serial Data Link Standard e.g. USB 2.0 & 3.0

Applications

  • Audio & Video Entertainment System
  • Blue-Ray Player
  • Optical Drive
  • Game Consoles
  • Smartphone/Tablet & Laptop PC
  • Laser/Inkjet Printers/Scanner
  • Mobile Devices utilizing serial I/O technologies
  • Others

Product Type - Gold Plated FFC

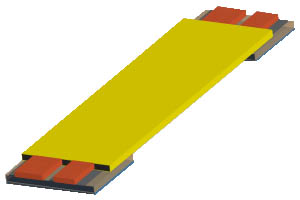

GND Type

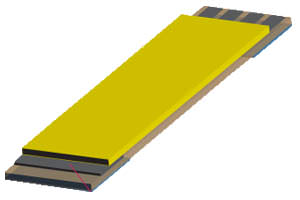

External GND Type

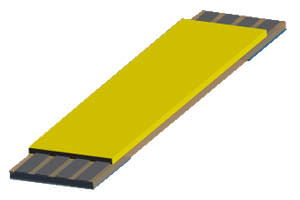

Non GND Type

Noise received by shield material is guide through an FFC Signal line to the ground

Ground of the shield material is metal foil connected to an end

Low-Priced shield material using non-conductive adhesive without the need for grounding
